Motion Sensor
MS-1+SLG-DIM
- In stock, ready to ship
- Backordered, shipping soon

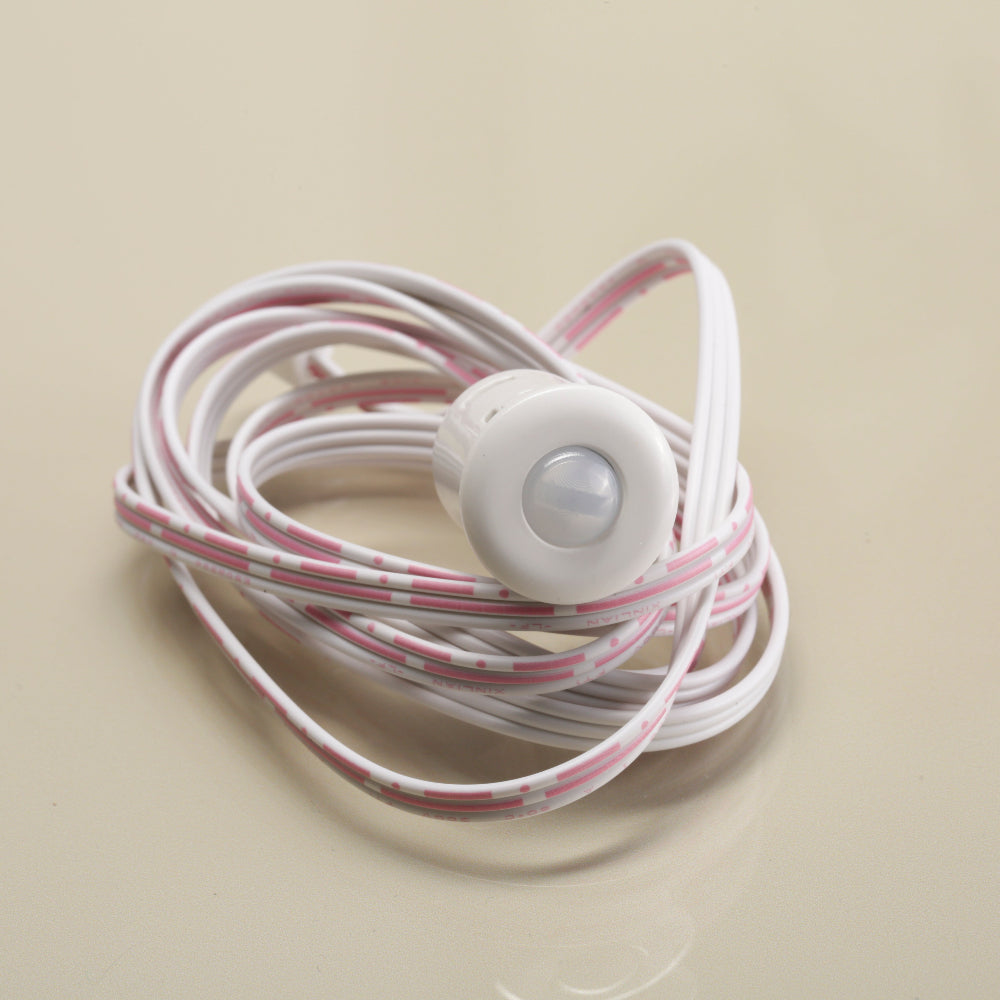

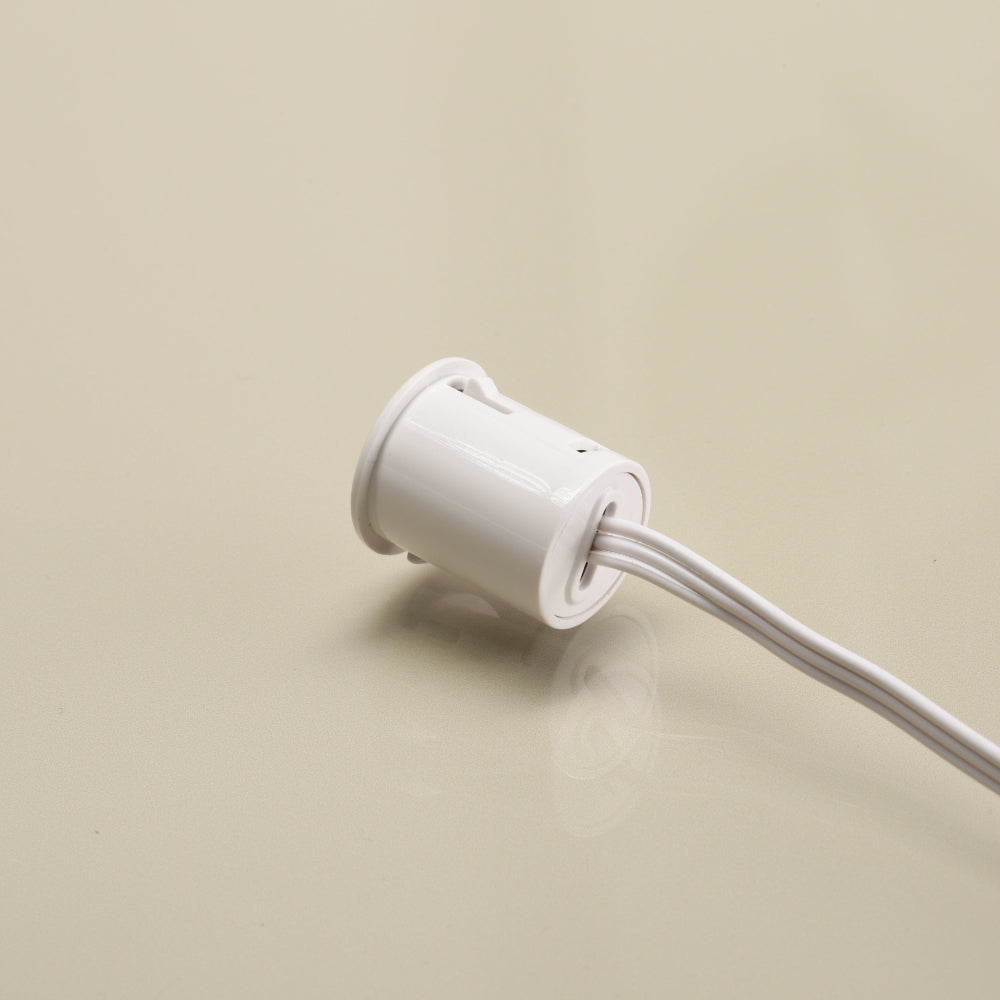

Designed for seamless integration into cabinets, wardrobes, custom furniture and really anywhere indoors. With a 3-4m detection range, 120-degree detection angle, and an automatic shut-off after 30 seconds of no motion detection, it delivers energy-efficient, hands-free lighting.
Perfect for cabinet and wardrobe makers, this compact sensor pairs effortlessly with our LED range to create intuitive, modern lighting solutions that combine functionality and style.
|
Dimensions |
D20*L24.5mm |
| Mounting Options |
Recessed |
|
Cutout Dimensions |
D17mm |
|
Sensitivity Field |
<3-4m |
|
Sensitivity Angle (°) |
120° |
|
Input Voltage (V) |
12V-48V DC |
|
Output Current |
8A |
|
Output Type |
Constant Voltage |
|
Output Power (W) |
96W @12V |
|
IP Rating |
IP20 |
|
Dimmable |
Yes |
|
Wiring |
Fly Leads + quick connect |
|
Warranty |
60 months |
|
Supplied |
Motion Sensor |
|
Working Temp (°C) |
-30 ~ +50 |
|
Additional Notes |
Ensure the motion sensor is not exposed to direct sunlight to avoid interference signals. Install the motion sensor in a dry environment, away from windows, air conditioners, and fans. Keep the motion sensor away from heat sources such as countertops, kitchen appliances that emit steam, walls in direct sunlight, and stoves. Avoid placing the motion sensor near air conditioners, heating systems, refrigerators, or other sources of hot or cold air. For best performance, install the motion sensor wall-mounted at 1-1.5 meters or ceiling-mounted at no more than 3 meters in height. |
