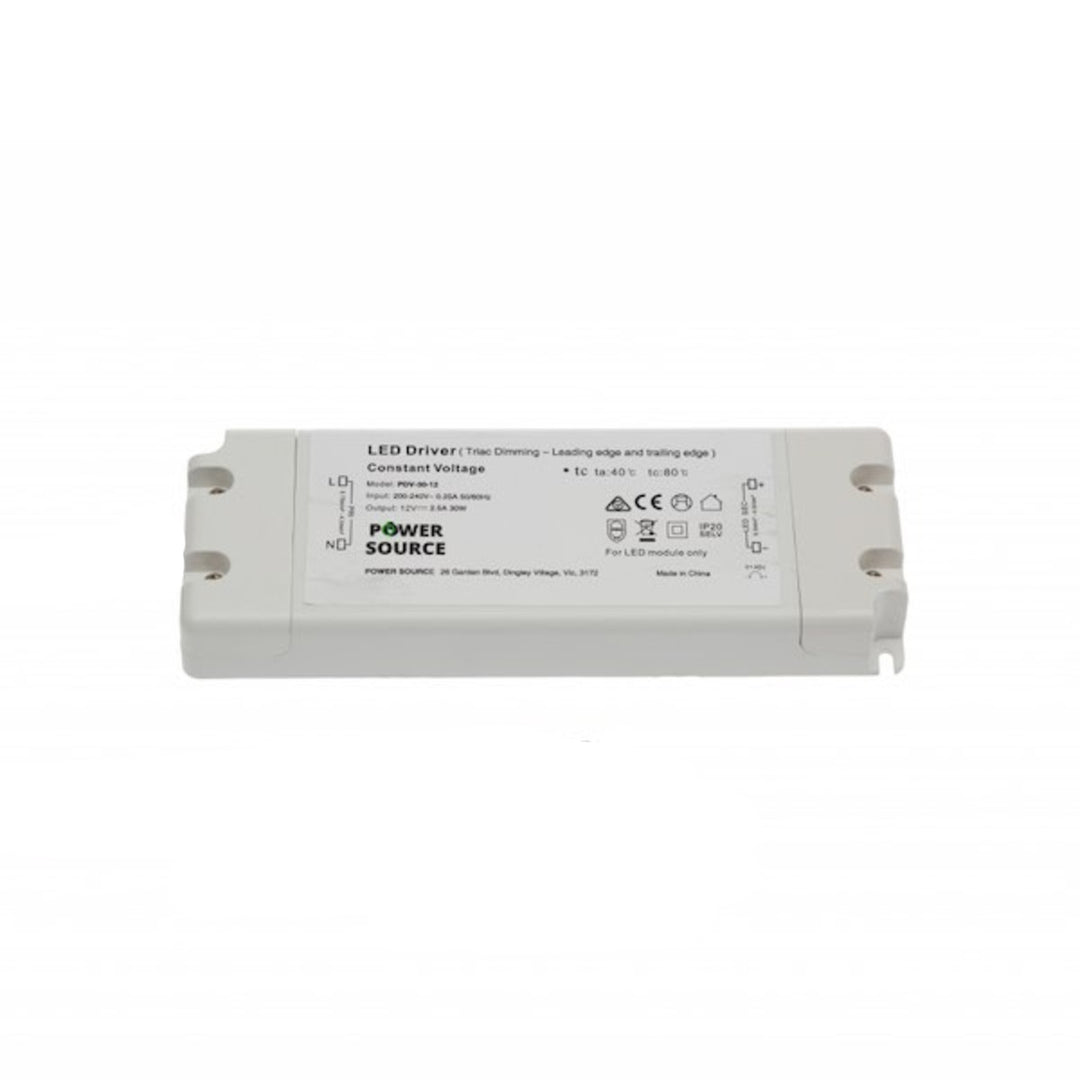

PS 30W 12V Dim Driver
PDV-30-12
- In stock, ready to ship
- Backordered, shipping soon
Power Source AC transformers are manufactured to AS/NZ3108-1994 and feature a tropic proof anti-fungus protection, which is very important for certain regions of Australia.
| Input Type | 1M Flex & Plug |
| Input Voltage | 200 ~ 240VAC |
| Input Current | 0.22A |
| Output Voltage | 12V |
| Output Current | 2.5A |
| Rated Output Power | 30W |
| Output Type | PWM Output |
| Output Connector | Screw Terminals |
| Dimming / Control Options | Dimmable |
| Control Options | AC Phase Cut (Leading & Trailing Edge) |
| Prescribed Electrical Item | Yes |
| SELV | Yes |
| Efficiency | 79.00% |
| Operating Temperature Range | '-40 ~ +70ºC |
| Warranty | 5 Years |
| Approvals | CE,RCM |
| IP Rating / Environmental Protection | Less than IP65 |
| Dimensions | 155*54*20mm (L*W*H) |
