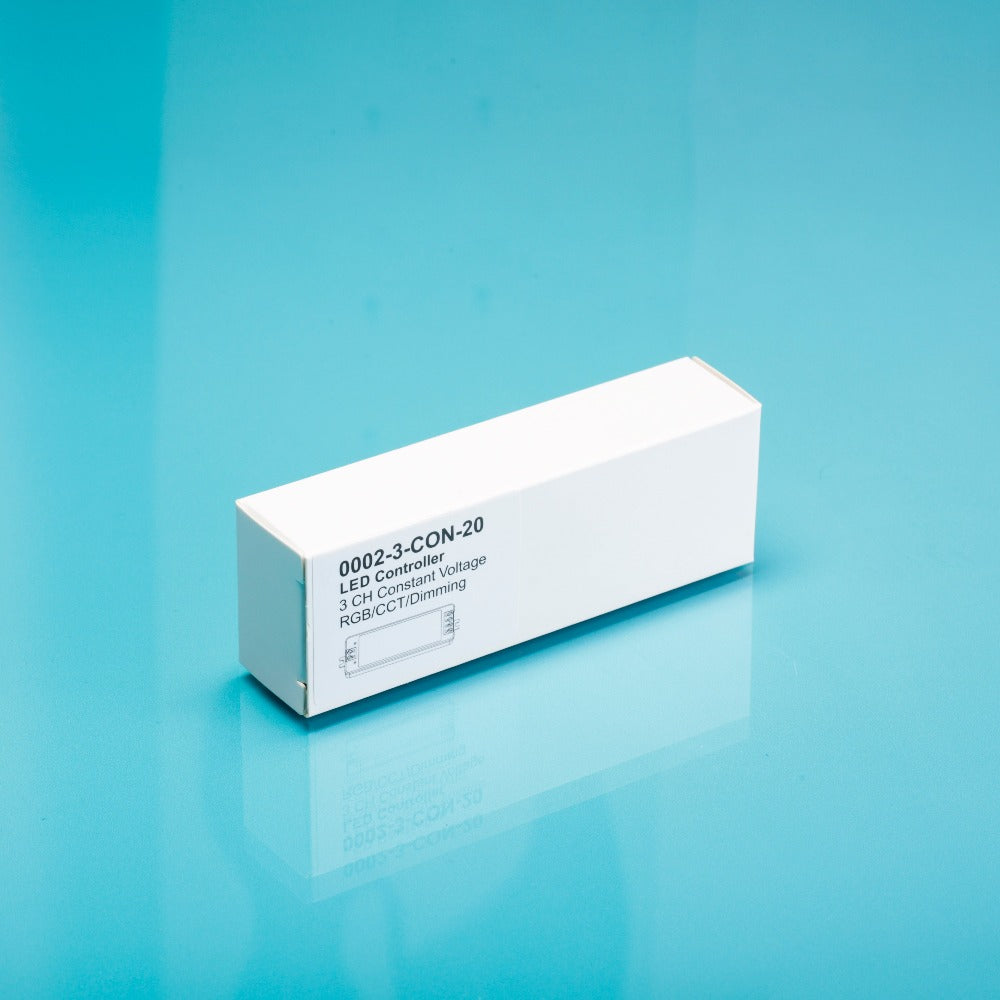

CHROMA RGB Controller
0002-3-CON-20
- In stock, ready to ship
- Backordered, shipping soon
Master sophisticated lighting scenarios with Chroma RGB LED RF Controller, designed for seamless control over RGB, CCT, and dimming functionalities. Supports up to 10 remote controls across single or multiple zones, offering comprehensive coverage. Experience smooth, flicker-free dimming with 4096 levels and enrich your space with 10 dynamic RGB modes. Its auto-transmitting capability allows for easy synchronization across multiple controllers within a 30-meter range, while a 3-second fade time ensures smooth light transitions. Perfect for any setting requiring precise and flexible lighting adjustments.
|
Input Voltage (VDC) |
12-24VDC |
|
Input Current (A) |
12.5A |
|
Output Voltage (VDC) |
3 X 12-24VDC |
|
Output Current |
3CH, 4A/CH |
|
Output Power (W) |
144-288W (12-24V) |
|
Output Type |
Constant Voltage |
|
Input Signal |
RF 2.4GHz |
|
Control Distance |
30m (Barrier Free Space) |
|
Dimming Gray Scale |
4096 (2^12) levels |
|
Dimming range |
0-100% |
|
Dimming Curve |
Logarithmic |
|
PWM Frequency |
1000Hz (default) |
|
Operation Temperature |
-20°C ~ +55°C |
|
Case Temperature (Max) |
+85°C |
|
IP Rating |
IP20 |
|
Warranty |
60 months from date of purchase |
|
Protection |
Reverse polarity |
|
Additonal Notes |
The output power of a constant voltage power supply should be at least 1.2 times that of the output load (light strip), otherwise the full power output of the load can easily cause automatic flickering or shaking of the light. |
